200m 300m 500m 600m Hydraulic Trailer Mounted Multifunctional Water Well XYX-3 Drilling Rig
€ 1.00
200m 300m 500m 600m Hydraulic Trailer Mounted Multifunctional Water Well XYX-3 Dril 200m 300m 500m 600m Hydraulic Trailer Mounted Multifunctional Water Well XYX-3 Drilling Rig
The drilling depth can be configured with different accessories according to your needs to reach the drilling depth you need, which is convenient for movement and transportation and suitable for loosening soft soil layers and hard rock layers
| Drilling depth | 100m,200m,300m,400m,500m,600m |
|---|---|
| Maximum opening diameter | 300mm / 200mm /150mm / 75mm |
| Movement method | Can be moved by traction |
Details About 200m 300m 500m 600m Hydraulic Trailer Mounted Multifunctional Water Well XYX-3 Drilling Rig

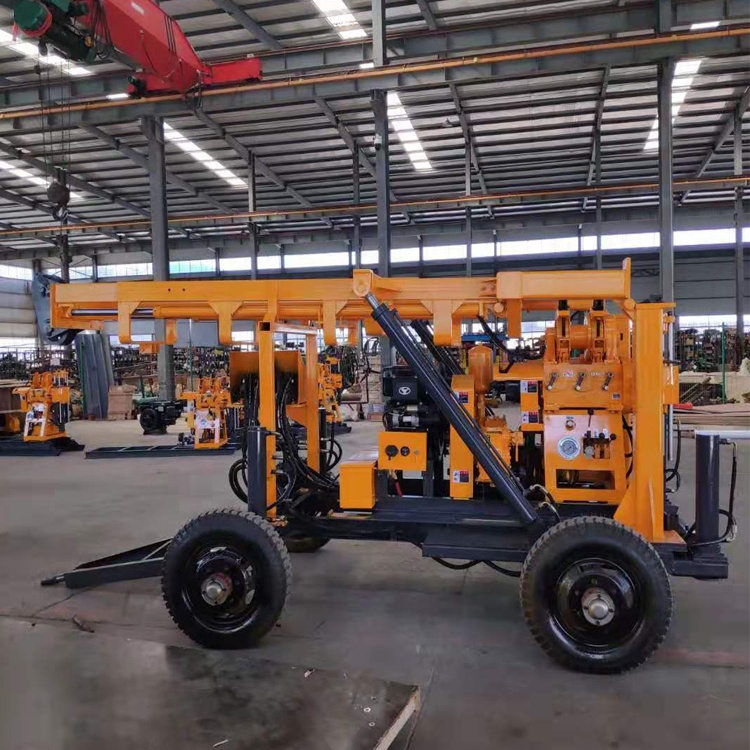

4 wheels 200m 300m 500m 600m Hydraulic Trailer Mounted Multifunctional Water Well XYX-3 Drilling Rig

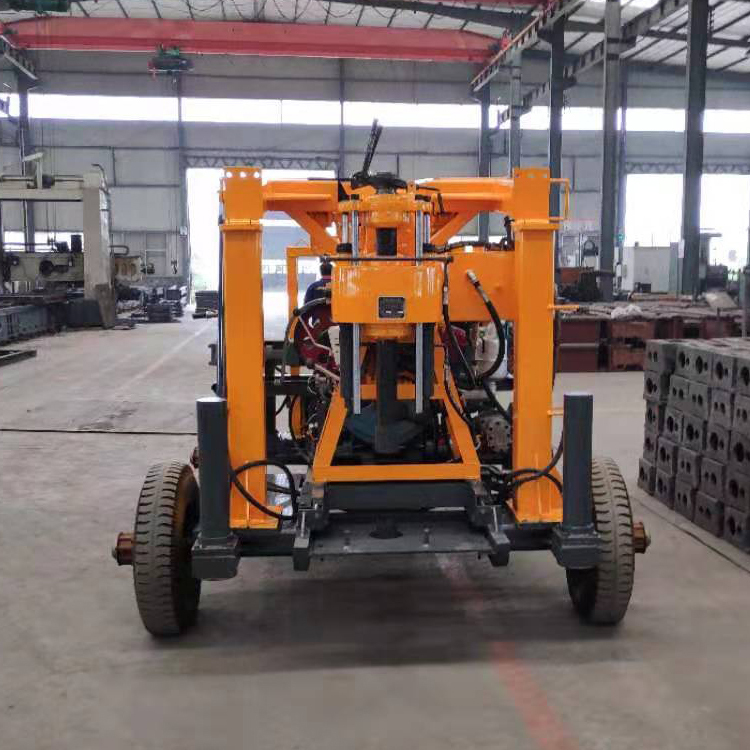

4 wheels 200m 300m 500m 600m Hydraulic Trailer Mounted Multifunctional Water Well XYX-3 Drilling Rig
Characteristics of XYX wheeled hydraulic core drilling rig
The drilling rig is equipped with wheeled walking mechanism and hydraulic cylinder support, which is convenient for the whole
machine to be relocated and easy to adjust the level of the drilling rig.
Using the ball card holding mechanism to replace chuck,can implement non-stop down rod,convenient operation,safe and reliable.
With oil pressure feeding mechanism to improve drilling efficiency
The pressure gauge is provided with the pressure gauge of the bottom of the hole, so it is easy to master the hole in the hole.
The lifting and falling tower is hydraulic operation, which is convenient and reliable.
The diesel engine uses electric start to reduce the labor intensity of the worker.
4 wheels 200m 300m 500m 600m Hydraulic Trailer Mounted Multifunctional Water Well XYX-3 Drilling Rig
|
Drilling depth
|
100/ 200 / 300/400/500/ 600 m
|
|
Maximum opening diameter
|
300mm / 200mm /150mm / 75mm
|
|
Max open hole caliber
|
300mm
|
|
Final hole diameter
|
75mm
|
|
Drill pipe diameter
|
50mm
|
|
Borehole inclination
|
90°-65°
|
|
A vertical scroll of painting
|
|
|
Vertical rotation speed of vertical axis 30-1050r/min
|
|
|
Vertical reversal speed
|
64 128 287 557 r/min
|
|
Vertical axis stroke
|
450mm
|
|
Diameter of shaft inner hole
|
96mm
|
|
Vertical axis lifting capacity
|
60kn
|
|
Main hoist (hydraulic drive)
|
|
|
Single rope lifting speed
|
0.41 0.82 1.64m/s
|
|
Wire rope diameter
|
13mm
|
|
Band width
|
90mm
|
|
Drum diameter
|
260mm
|
|
Reel capacity
|
35m
|
|
Maximum lifting capacity of single rope
|
40kn
|
|
Auxiliary hoist (hydraulic drive)
|
|
|
Drum diameter
|
140mm
|
Q: Whafs your warranty period?
A: 12 months from winches accepted.
Q: What are the terms of payments?
A: We accept T/T, Western Union, Paypal, and cash.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock, or it is 7-10 days if the goods are not in stock, it is according to quantity.
Q: What kind of shipment ways are available?
A4: By sea to your nearest port.
By air to your nearest airport.
