High Class Total Station Tianyu CTS-632R10M Measurement Surveying Equipment
€ 4,000.00
igh Class Total Station Tianyu CTS-632R10M Measurement Surveying Equipment/ High Class Total Station Tianyu CTS-632R10M Measurement Surveying Equipment

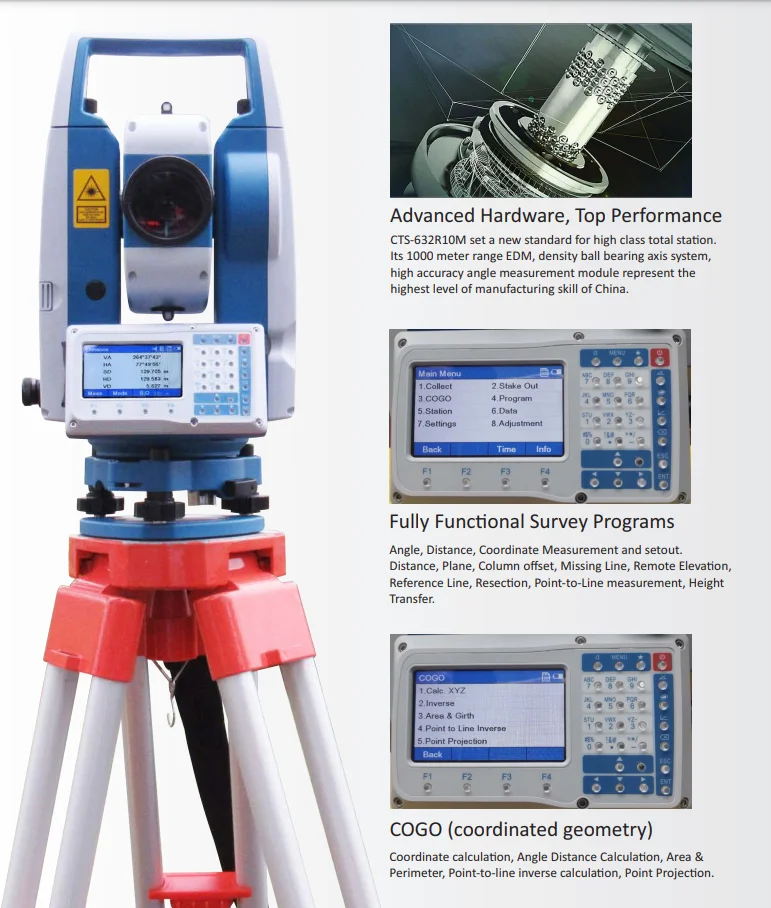

CTS-632R10M set a new standard for high class total station. Its 1000 meter range EDM, density ball bearing axis system, high accuracy angle measurement module represent the highest level of manufacturing skill of China
| Color | yellow |
|---|---|
| Weight | 7KG |
| Dimension | 1m x 0.65m x 0.3m |
Details About High Class Total Station Tianyu CTS-632R10M Measurement Surveying Equipment
Product Description
●Reach to 1000m reflectorless measurement
●Long-lasting lithium battery
●Absolute encoding
●Touch point keypad with backlights
●Active screen backlight technologic
●High resolution touch screen
●EDM trigger key
●USB data transfer and storage
●Laser plummet
Specification
|
Model
|
CTS-632R10M
|
|
|
Distance Measurement
|
||
|
Range
|
Reflectorless
|
1000m
|
|
Prism
|
5000m
|
|
|
Accuracy
|
Reflectorless
|
3mm+2ppm
|
|
Prism
|
2mm+2ppm
|
|
|
Sheet
|
3mm+2ppm
|
|
|
Measurement Time
|
1.3s in fine 0.2s in tracking
|
|
|
Atmospheric Correction
|
Auto correction
|
|
|
Prism Constant
|
Manual input, Auto correction
|
|
|
Temperature Correction
|
Sensor Reading
|
|
|
Distance Reading
|
Max:99999999.999m Min:1mm
|
|
|
Angle Measurement
|
||
|
Accuracy
|
2″
|
|
|
Method
|
Absolute, continuous
|
|
|
Disk Diameter
|
79mm
|
|
|
Detection Method
|
V: Dual, H: Dual
|
|
|
Angle Reading
|
Min: 1″
|
|
|
Telescope
|
||
|
|
Erect
|
|
|
Tube Length
|
152mm
|
|
|
Effective Aperture
|
45mm (EDM 47mm)
|
|
|
Magnification
|
30x
|
|
|
Field Of View
|
1°30″
|
|
|
Resolving Power
|
3″
|
|
|
Minimum Focus Distance
|
1.5m
|
|
|
Reticle Illumination
|
10 Brightness Levels
|
|
|
Operaon System
|
||
|
Memory
|
16000 Points
|
|
|
Compensator
|
||
|
System
|
Liquid, Dual axis
|
|
|
Working Range
|
±6′
|
|
|
Accuracy
|
1″
|
|
|
Plummet
|
||
|
Laser Plummet (Default)
|
Accuracy
|
±1.5mm @1.5m
|
|
Laser Brightness
|
5 levels adjustable
|
|
|
Wavelength
|
635nm
|
|
|
Laser Class
|
Class 2
|
|
|
Laser Power
|
0.5mW
|
|
|
Keyboard And Display
|
||
|
Keyboard
|
Alphanumeric 30 Keys
|
|
|
Display
|
3.0 Inches, Color Touch TFT
|
|
|
Resolution
|
240*400 dpi
|
|
|
Position
|
Face 1, Face 2
|
|
|
Interface
|
||
|
Data Interface
|
USB Flash Disk, Bluetooth
|
|
|
Battery
|
||
|
Type
|
Lithium
|
|
|
Voltage
|
7.4V
|
|
|
Operating Time
|
8 hours
|
|
|
Vial
|
||
|
Plate Vial
|
30″/2mm
|
|
|
Circular Vial
|
8’/2mm
|
|
|
General
|
||
|
IP Rate
|
IP55
|
|
|
Temperature Range
|
-20°C ~ +50°C
|
|
|
Dimension
|
206*200*353mm
|
|
|
Weight
|
6.0kg
|
|
